Power amplifier
100~3000MHz, Gain40dB, Psat37dBm, SMA
- DPA8-100-3000-4039
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 100 | ~ | 3000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | 3 | dB | ||
| Input VSWR | 1.5 | |||
| Psat | 37 | dBm | ||
| Spur reduction | 60 | dBc | ||
| Harmonic Rejection | 15 | dBc |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| color | Grey black, follow P517 (grey black) S05. II Y requirements |
| Working voltage | +220V |
| Relative humidity | 95% Design assurance |
| Operation Temp. | -15~+45℃ Design assurance |
| Storage Temp. | -25~+75℃ Design assurance |
Function Description
| No. | Content | Note |
| 1 | Equipped with temperature detection and over temperature protection functions | |
| 2 | Equipped with input over power protection function | |
| 3 | Equipped with output port VSWR protection function | |
| 4 | With waterproof function | |
| 5 | Has signal bypass function, which means the signal is directly connected when turned off |

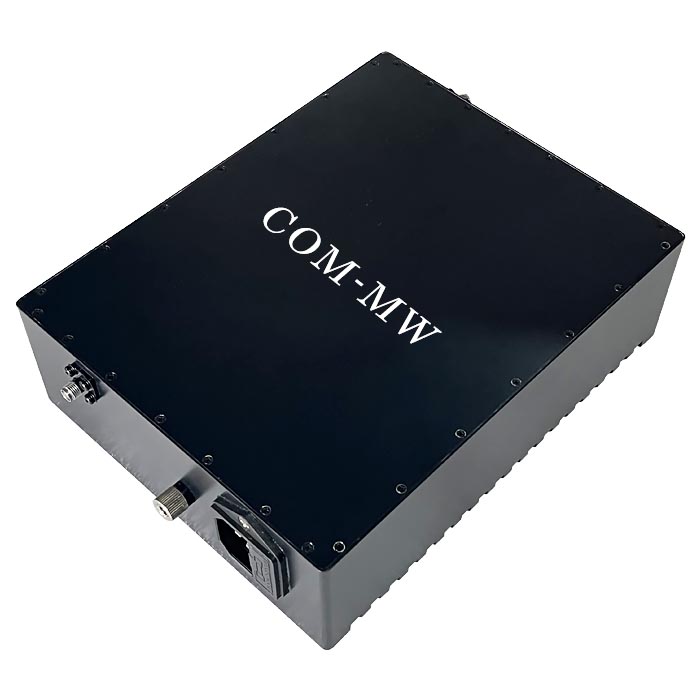

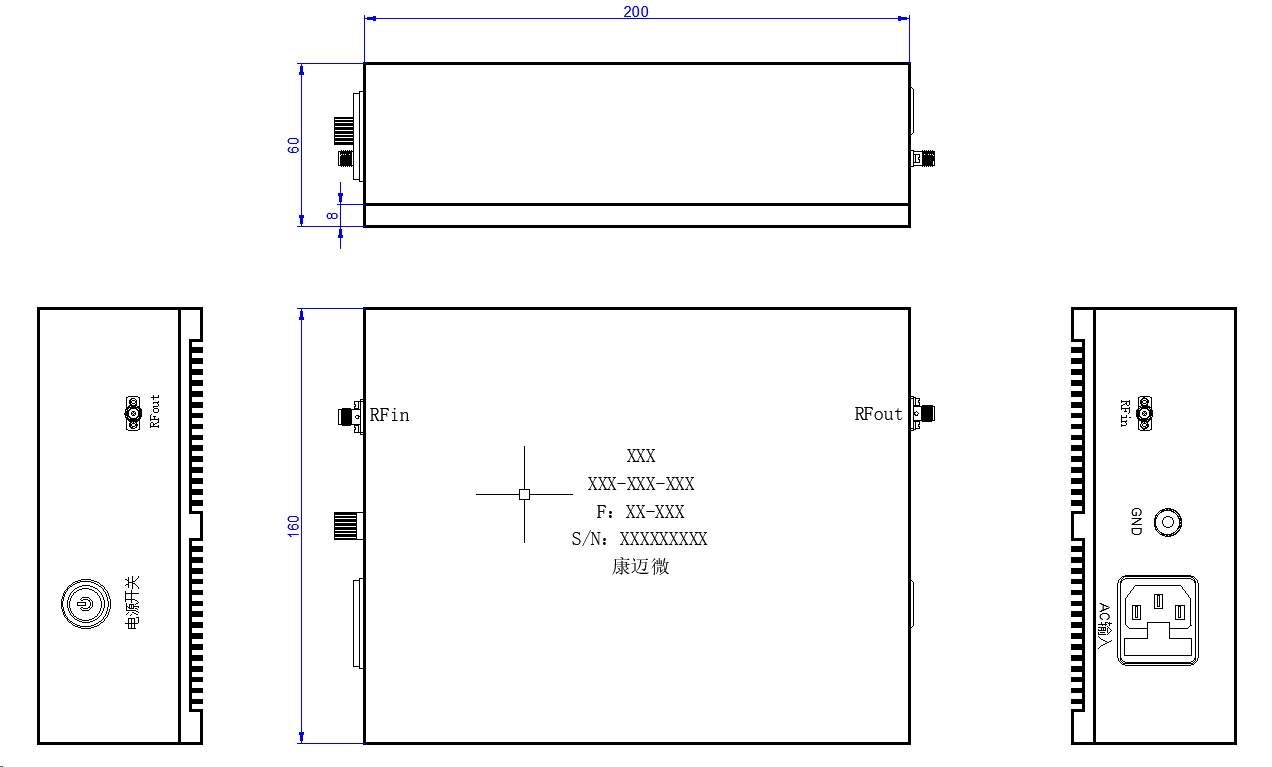

Reference picture
Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
