Power amplifier
700~8000MHz, Gain44dB, P-1dB30dBm, SMA
- DPA8-700-8000-3447
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 700 | ~ | 8000 | MHz |
| Gain | 44 | dB | ||
| Gain flatness | ±2.5 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 30 | dBm | ||
| Max input power | 15 | dBm |
Environmental
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +18V |
| Working current | 1000mA |
| Operation Temp. | -30~+60℃ Design assurance |
| Quality Grade | Industrial grade |

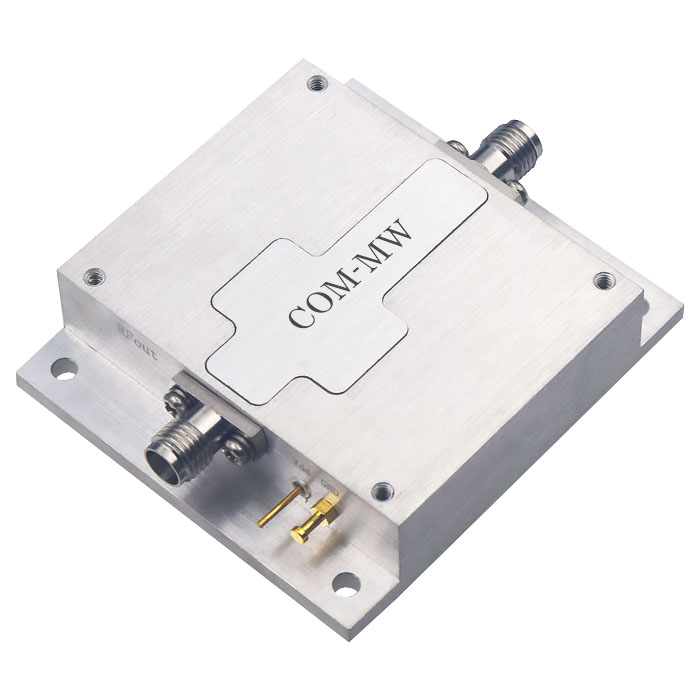

Reference picture

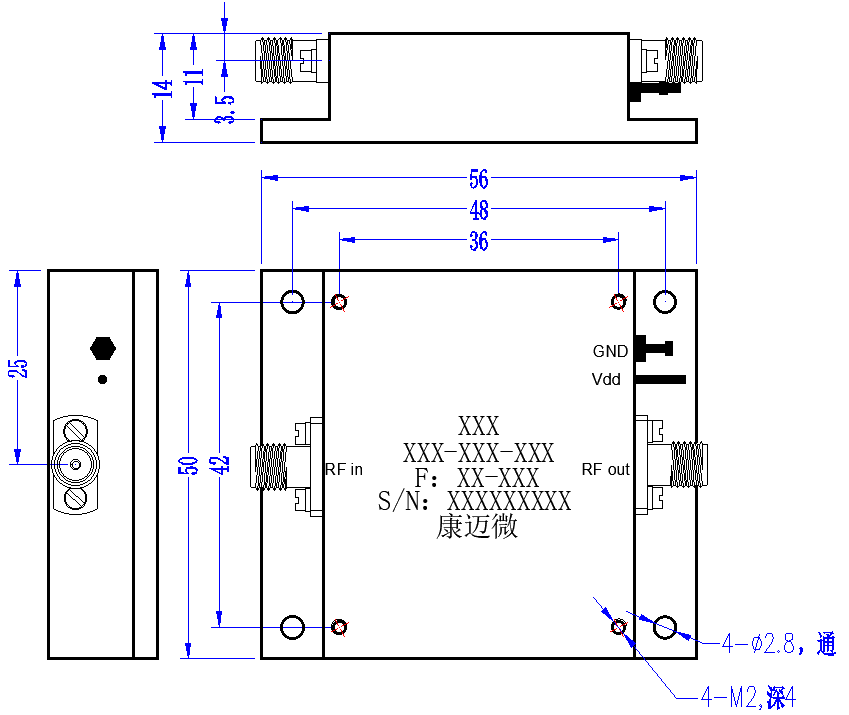

Configuration
Note
Store humidity below 25%, pay attention to dust and static electricity prevention; Please pay attention to the power consumption of the product and consider amplifier heat dissipation during installation; If the overall temperature of the product is greater than 85 ℃, please negotiate with us before placing an order.
