LNA
26.5~40GHz, Gain40dB, Noise figure2.5dB, P-1dB13dBm, 2.92
- DLNA8-26500-40000-012
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 26.5 | ~ | 40 | GHz |
| Gain | 40 | dB | ||
| Gain flatness | 3 | 5 | dB | |
| Noise figure | 2.5 | 3 | dB | |
| VSWR | 1.9 | 2.5 | ||
| P-1dB | 10 | 13 | dBm | |
| Output Psat | 16 | dBm |
Other parameters
| Connector | 2.92-K |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Reverse isolation | 60dB |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | Gain dB | NF dB | P-1out dBm | Psat dBm |
| 25 | 2.33 | 2.27 | 43.41 | 2.53 | 12.8 | 16.3 |
| 26.14 | 1.85 | 1.94 | 44.5 | 2.3 | 12.3 | 15.8 |
| 27.29 | 1.38 | 1.76 | 45.74 | 2.5 | 12.4 | 16 |
| 28.43 | 1.32 | 1.42 | 46.55 | 2.25 | 12.6 | 16.7 |
| 29.57 | 1.7 | 1.12 | 46.52 | 2.65 | 14.1 | 16.9 |
| 30.71 | 1.9 | 1.25 | 45.72 | 2.28 | 14.5 | 17.3 |
| 31.86 | 1.97 | 1.47 | 46.09 | 2.64 | 15 | 18.1 |
| 33 | 1.47 | 1.79 | 45.99 | 2.15 | 14.5 | 17.8 |
| 34.14 | 1.27 | 1.72 | 45.18 | 2.53 | 14.4 | 18 |
| 35.29 | 1.46 | 1.4 | 44.15 | 2.26 | 14.6 | 18.2 |
| 36.43 | 1.79 | 1.2 | 44.12 | 2.57 | 14.3 | 18.4 |
| 37.57 | 1.56 | 1.37 | 44.81 | 2.13 | 14.4 | 19.2 |
| 38.71 | 1.46 | 1.48 | 44.58 | 2.07 | 14.4 | 19.1 |
| 39.86 | 1.73 | 1.65 | 44.7 | 2.04 | 14.6 | 19.8 |
| 41 | 1.37 | 2.09 | 45.62 | 2.06 | 14.6 | 20 |
Reference picture
Configuration(mm)

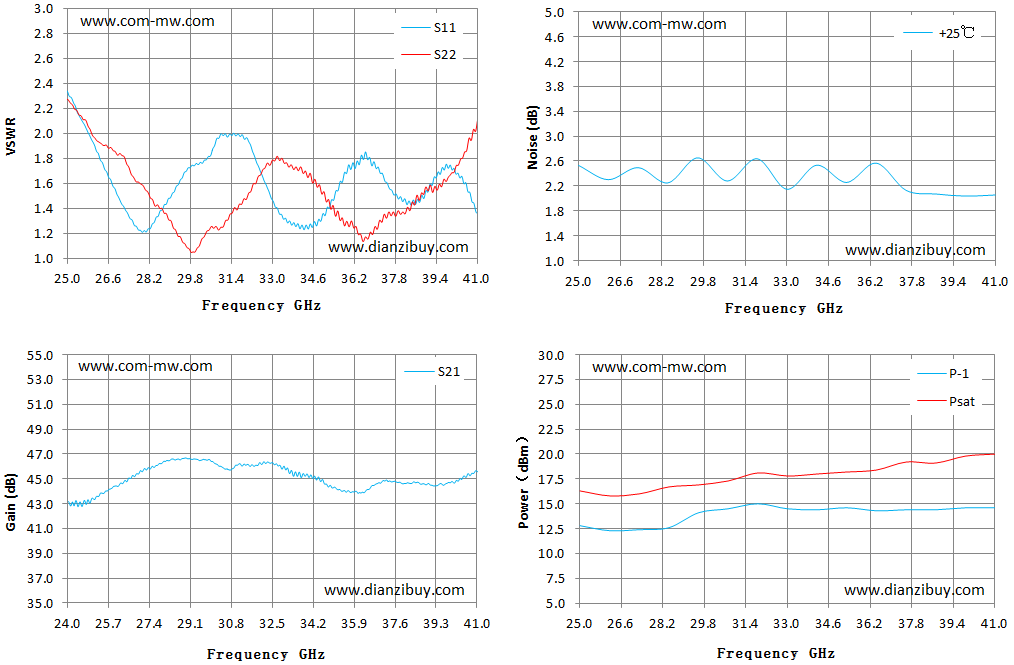

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
