Broadband LNA
4~9GHz, Gain40dB, Noise figure3dB, P-1dB10dBm, N, USB Type-C port charging.
- DCLNA0409-40C-S
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise, with rechargeable batteries.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 4 | ~ | 9 | GHz |
| Gain | 40 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 3 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | N -JK (Input N-J) |
| Connector material | Stainless steel |
| Max input power | 10dBm |
| Impedance | 50Ω |
| Surface | Grey |
| Working voltage | +5V, USB Type-C port charging. |
| Working current | 500mA |
| Operation Temp. | -10~+50℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | 1. Input N-J, Output N-K |
| 2. With power on/off instructions, charging instructions (including full), undervoltage instructions, (normal) working instructions; | |
| 3. Lithium battery power supply (3 hours); | |
| 4. Configure charger (adapter) | |
| / | |
| 6. The charging environment temperature is degree0~+50℃; | |
| 7. Charging Connector: USB Type-C, with dustproof silicone pad; |
Typical test data
| Frequency | S11 VSWR | S22 VSWR | NF | Gain | P-1dB out | Psat |
| GHz | / | / | dB | dB | dBm | dBm |
| 2 | 2.06 | 1.3 | 2.77 | 41.26 | 18.4 | 20 |
| 2.64 | 2.07 | 1.94 | 1.47 | 41.8 | 17.4 | 19.6 |
| 3.29 | 1.62 | 1.49 | 1.35 | 43.74 | 18 | 19.5 |
| 3.93 | 1.72 | 1.7 | 1.3 | 43.92 | 17.5 | 20.3 |
| 4.57 | 1.69 | 2.18 | 1.05 | 43.36 | 18.7 | 19.9 |
| 5.21 | 1.17 | 1.93 | 1.22 | 44 | 18.9 | 19.4 |
| 5.86 | 1.16 | 1.61 | 1.17 | 44.94 | 18.9 | 19.6 |
| 6.5 | 1.29 | 1.64 | 1.15 | 44.73 | 18.6 | 19.5 |
| 7.14 | 1.18 | 1.57 | 1.3 | 45.16 | 18 | 19.4 |
| 7.79 | 1.1 | 1.31 | 1.29 | 45.52 | 17.3 | 19.3 |
| 8.43 | 1.65 | 1.53 | 1.4 | 44.48 | 17.3 | 19.7 |
| 9.07 | 2.09 | 2.19 | 1.35 | 43.09 | 16.9 | 20 |
| 9.71 | 1.81 | 2.69 | 1.33 | 42.82 | 16.2 | 19.9 |
| 10.36 | 1.92 | 1.92 | 1.69 | 43.9 | 14.9 | 19.4 |
| 11 | 4.26 | 1.49 | 1.47 | 41.42 | 14.9 | 19.4 |

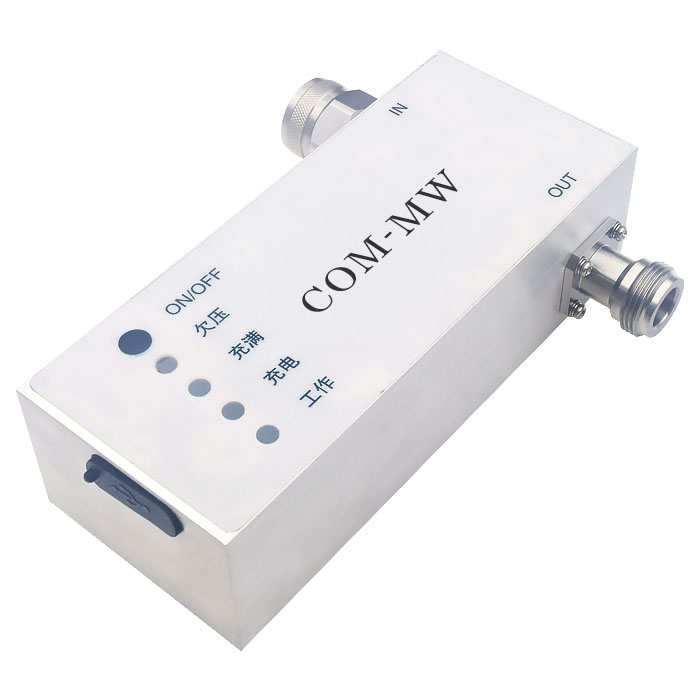

Reference picture

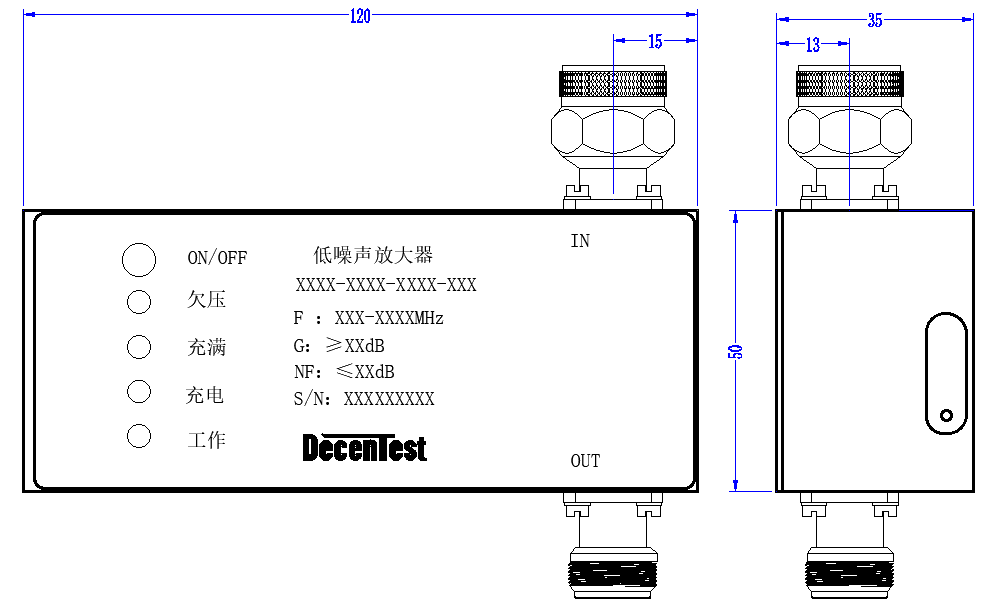

Configuration(mm)

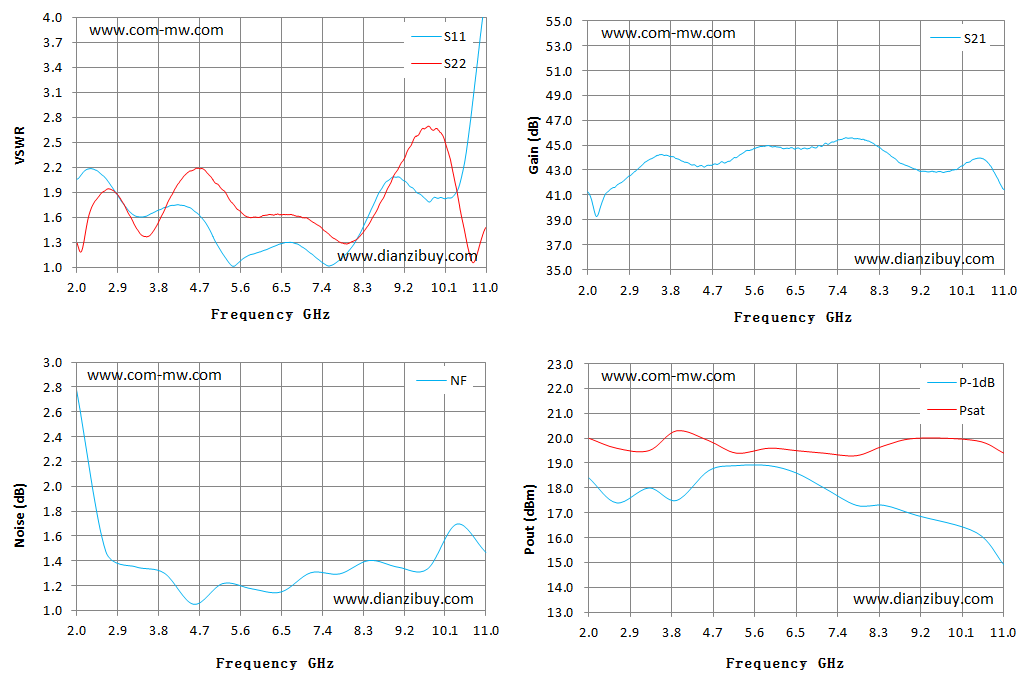

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken.
