LNA
0.009~6000MHz, Gain15, Noise figure3.5, P-1dB10, SMA, Input limiting protection
- DLNA8-0.009-6000-2483
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.009 | ~ | 6000 | MHz |
| Gain | 15 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 3.5 | dB | ||
| VSWR | 2 | |||
| P-1dB | 10 | dBm | ||
| Clipping level | 15 | dBm | ||
| Max input power | 10 | W |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +7.4~15V |
| Working current | 200mA |
| Operation Temp. | -40~+85℃ Design assurance |
| Other | Input limiting protection |
Typical test data
| Frequency(MHz) | S11 VSWR | S22 VSWR | S21 gain | S21 gain | P-1dB |
| 10 | 1.41 | 1.19 | 18.55 | 5.86 | 11.69 |
| 438 | 1.35 | 1.14 | 19.02 | 3.02 | 11.64 |
| 866 | 1.33 | 1.06 | 18.43 | 3.14 | 11.04 |
| 1294 | 1.33 | 1.12 | 18.29 | 3.46 | 11.61 |
| 1721 | 1.32 | 1.18 | 18.16 | 2.88 | 11.48 |
| 2149 | 1.32 | 1.23 | 18.09 | 2.83 | 11.53 |
| 2577 | 1.33 | 1.29 | 18.05 | 2.95 | 11.82 |
| 3005 | 1.34 | 1.35 | 17.96 | 2.59 | 11.63 |
| 3433 | 1.33 | 1.41 | 17.91 | 2.55 | 12.12 |
| 3861 | 1.28 | 1.47 | 17.87 | 2.49 | 12.24 |
| 4289 | 1.19 | 1.53 | 17.8 | 2.09 | 12.04 |
| 4716 | 1.1 | 1.56 | 17.76 | 1.88 | 12.3 |
| 5144 | 1.12 | 1.59 | 17.7 | 1.73 | 11.89 |
| 5572 | 1.23 | 1.61 | 17.63 | 1.57 | 12.78 |
| 6000 | 1.35 | 1.63 | 17.54 | 1.48 | 11.88 |
Reference picture
Configuration(mm)

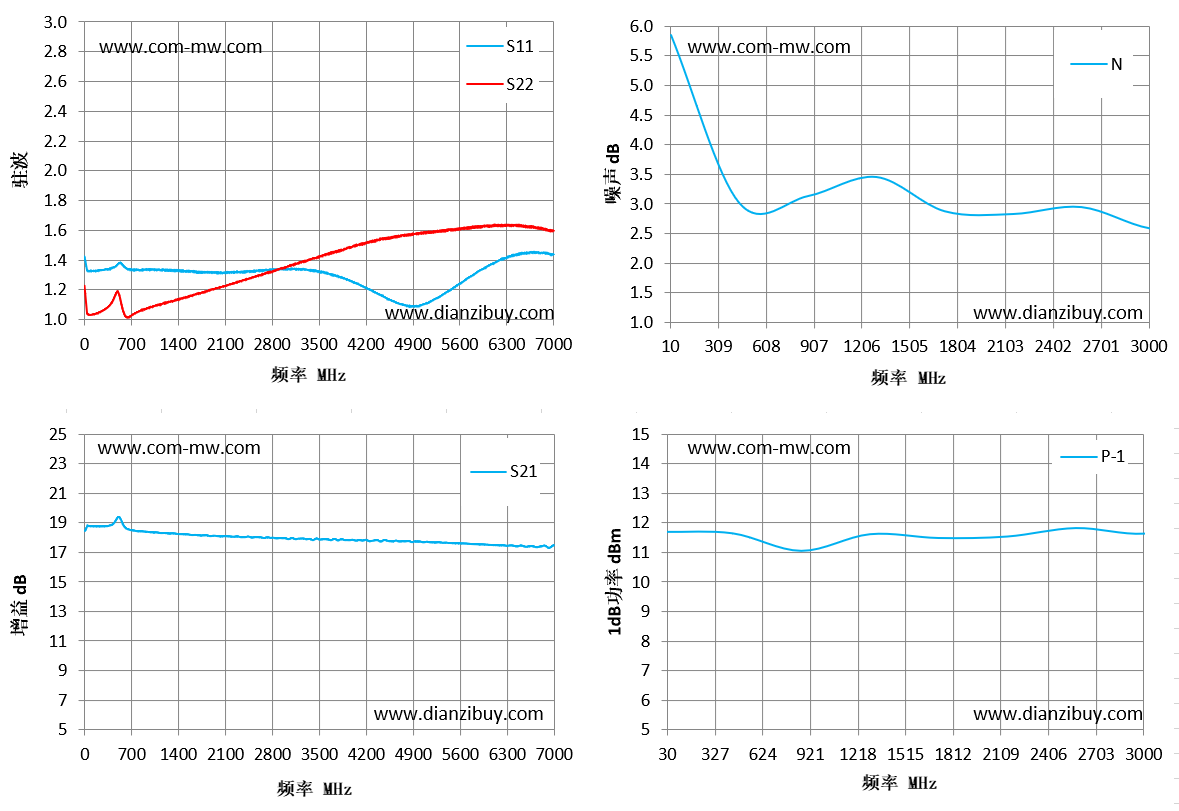

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
