Switch matrix

DC~13000MHz, 8 groups, choose 1 from 4, RJ-45, Reflective, 20ms, SMA, 220V

  • DSM8-0-13000-1082
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

tech specifications

ParametersMinTypicalMaxUnits
FrequencyDC~13000MHz
IL1.8dB
Isolation60dB
VSWR1.8

Other parameters

Switch way8 groups, choose 1 from 4
ControlRJ-45
Switching characteristicReflective switch
Switch time20ms
ConnectorSMA-K
Connector materialStainless steel
Impedance50Ω
SurfaceGrey
Power50W Design assurance
Product shell materialAluminium
Working voltage+220V
Work Temp.-30~+60℃ Design assurance
Quality GradeIndustrial grade
Switching Lifetime1 million Cycles

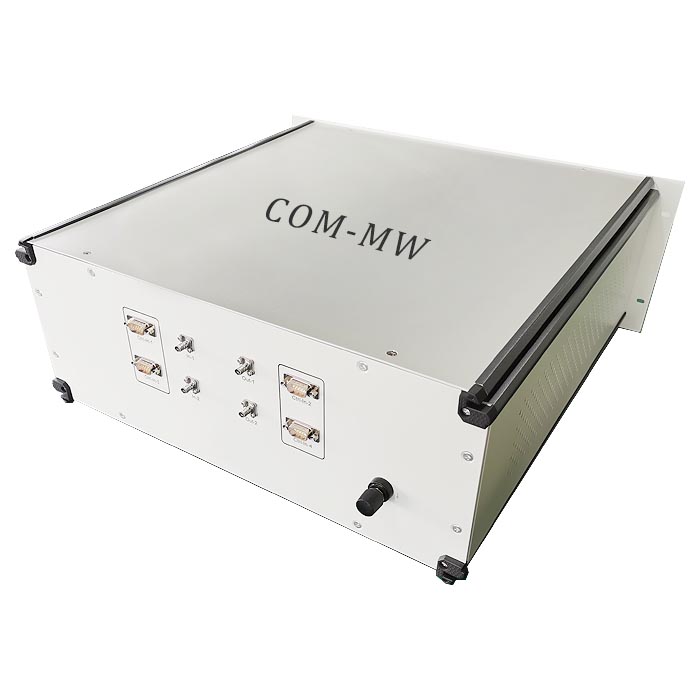

Reference picture

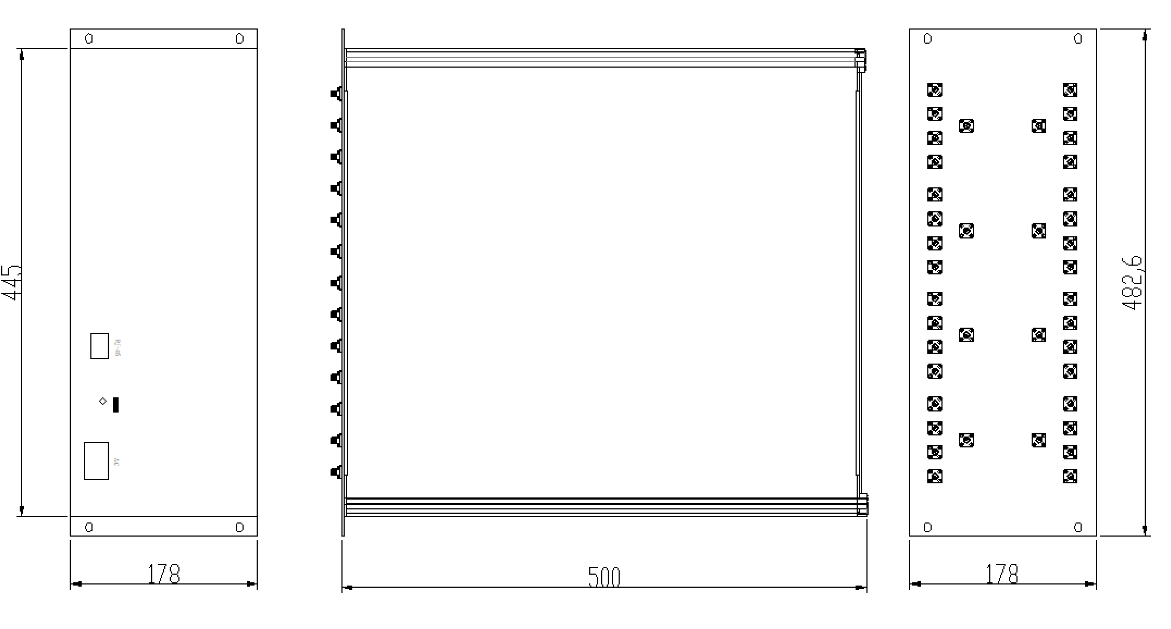

Configuration(mm)

Note

1Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution.
2If the temperature is higher than 125℃, consult with us before ordering.
