Switch matrix
400~2500MHz, 16*16, SMA
- DSM8-800-2500-2867
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS compliant (Meet RoHS standards can be customized)
Product Details
Product features
16 * 16 fully switched switch matrix with multiple control methods.
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 400 | ~ | 2500 | MHz |
| Gain | 0 | dB | ||
| Power | 15 | dBm | ||
| Ripple | ±2 | dB | ||
| Channel isolation | 75 | dB | ||
| VSWR | 2 |
Other parameters
| Switch way | 16*16 |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Power | 0.1W Design assurance |
| Product shell material | Aluminium |
| Working voltage | +220V |
| Work Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | / |
Communication mode
| No. | Interface | Note |
| 1 | RJ-45 | |
| 2 | RS485 | |
| 3 | RS232 |
Typical test data
| Frequency MHz | S11 VSWR | S21 Gain | S12 ISO | S22 VSWR |
| 632 | 1.22 | 2.73 | 86 | 1.09 |
| 814 | 1.17 | 1.74 | 87 | 1.21 |
| 996 | 1.14 | 1.83 | 87 | 1.23 |
| 1179 | 1.33 | 0.58 | 84 | 1.1 |
| 1361 | 1.21 | 1.67 | 86 | 1.34 |
| 1543 | 1.27 | 1.56 | 87 | 1.23 |
| 1725 | 1.29 | 1.58 | 88 | 1.18 |
| 1907 | 1.06 | 1.81 | 86 | 1.19 |
| 2089 | 1.29 | 1.82 | 84 | 1.17 |
| 2271 | 1.17 | 1.72 | 87 | 1.21 |
| 2454 | 1.27 | 2.02 | 85 | 1.11 |
| 2636 | 1.18 | 1.04 | 88 | 1.24 |
| 2818 | 1.27 | -0.22 | 86 | 1.04 |
| 3000 | 1.21 | -5.14 | 83 | 1.22 |

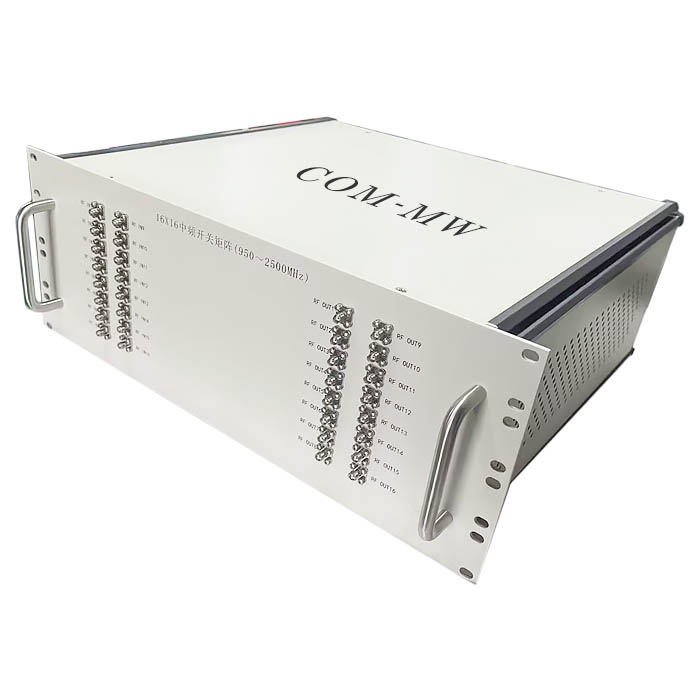

Reference picture

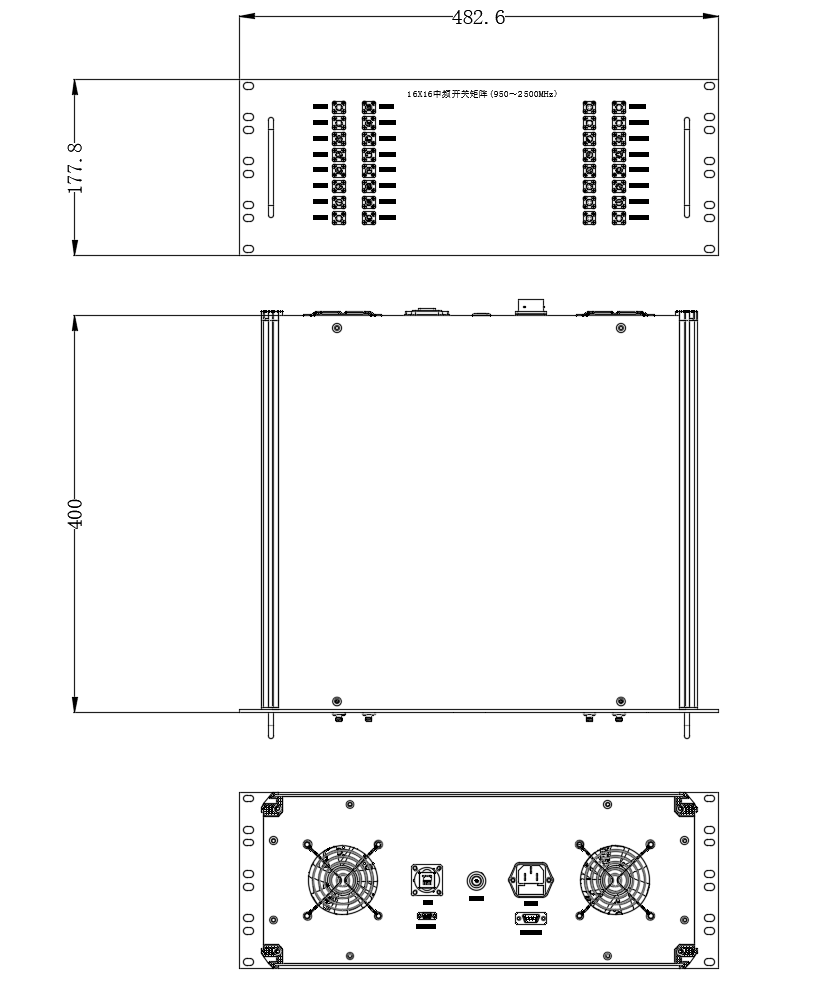

Configuration(mm)

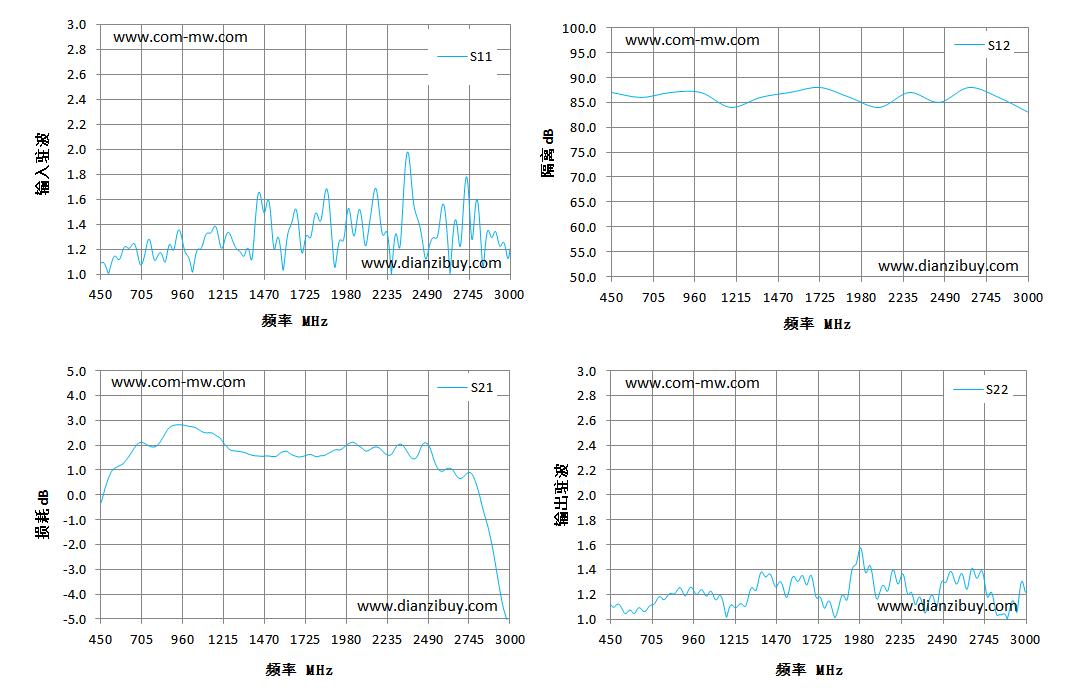

Typical test curve
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
