Power amplifier

18000~40000MHz, Gain30dB, Psat23dBm, 2.92

  • DPA8-18-40G-3532
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET

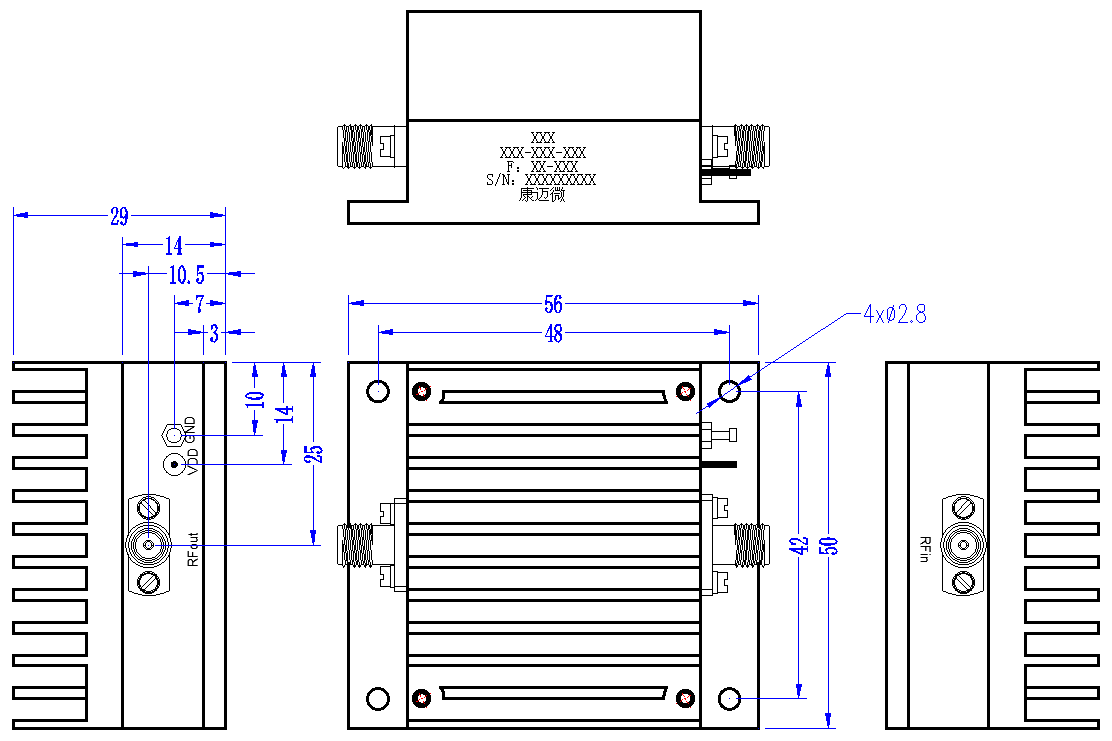

3D Outline Drawing

Product features

Broadband, small volume.

Main specifications

ParametersMinTypicalMaxUnits
Frequency18000~40000MHz
Gain30dB
Gain flatness±3dB
VSWR2.5
Noise figure3.84.5dB
Psat23dBm

Other parameters

Connector2.92-K
Connector materialStainless steel
Impedance50Ω
SurfaceConductive oxidation
Working voltage+12V
Working current1A
Operation Temp.-40~+70℃ Design assurance
Quality GradeIndustrial grade

Typical test data

Frequency GHzS11 VSWRS22 VSWRS21 Gain dBS21 NF dBP-1 dBmPsat dBm
16.001.482.2034.293.8720.1021.45
17.861.791.4639.193.6821.8423.50
19.711.421.2442.494.2222.8024.81
21.571.821.4842.133.7423.9024.20
23.431.631.3439.723.6224.2224.43
25.291.151.7140.223.5325.0625.34
27.141.431.5940.323.4125.7326.22
29.001.431.1740.653.7425.9026.32
30.861.861.3540.643.4526.1026.45
32.711.831.2342.833.8425.9726.20
34.571.511.1444.073.7825.5225.87
36.431.241.1542.113.4626.0026.26
38.291.161.3641.803.2825.9026.20
40.141.791.6441.813.5025.5025.70
42.001.601.2437.094.1625.2025.35

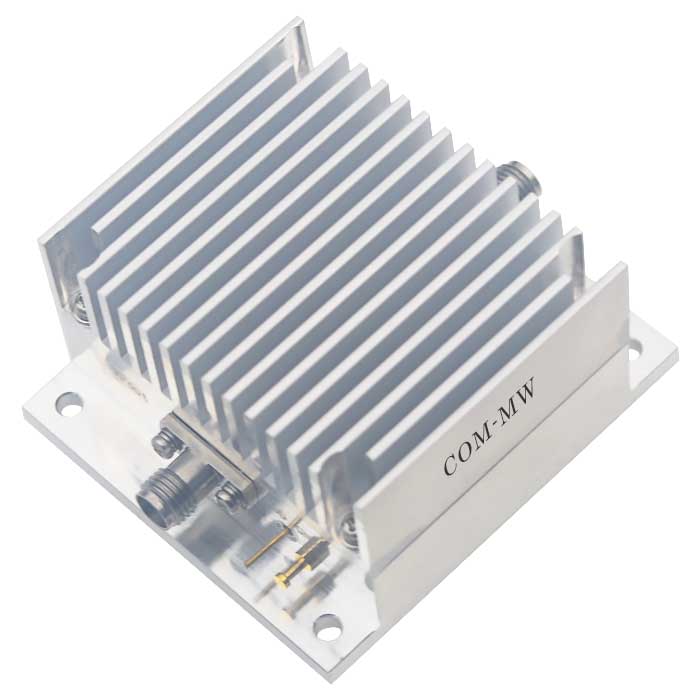

Reference picture

Configuration

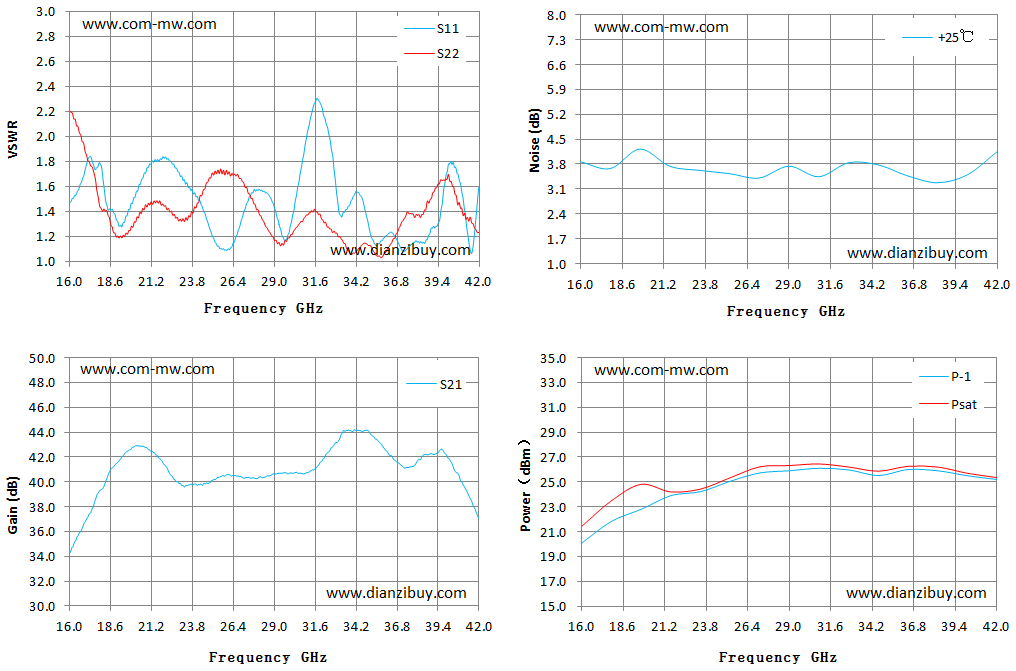

Typical test curve
