LNA
30~3000MHz, Gain40dB, Noise figure2dB, P-1dB14dBm, SMA-K
- DLNA8-30-3000-2308
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 3000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | ±1.5 | ±2 | dB | |
| Noise figure | 2 | dB | ||
| VSWR | 2 | 2.3 | ||
| P-1dB | 14 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| F(GHz) | S11 VSWR | S22 VSWR | Gain(dB) | P-1(dBm) | NF(dB） |
| 0.03 | 1.96 | 2.16 | 43.4 | 15.2 | 1.29 |
| 0.28 | 1.41 | 1.88 | 44.22 | 16.1 | 0.59 |
| 0.53 | 1.33 | 1.79 | 44.23 | 17.2 | 0.77 |
| 0.77 | 1.34 | 1.65 | 44.21 | 17.1 | 0.75 |
| 1.02 | 1.57 | 1.51 | 43.98 | 16.9 | 0.84 |
| 1.27 | 1.83 | 1.42 | 43.46 | 16.5 | 1.04 |
| 1.52 | 1.92 | 1.4 | 42.87 | 16.3 | 0.83 |
| 1.77 | 1.9 | 1.4 | 42.83 | 16.3 | 0.86 |
| 2.01 | 1.81 | 1.35 | 43.01 | 16.1 | 1.19 |
| 2.26 | 1.68 | 1.25 | 43.38 | 16.2 | 1.26 |
| 2.51 | 1.68 | 1.16 | 43.74 | 16.2 | 1.07 |
| 2.76 | 1.79 | 1.24 | 43.8 | 16.3 | 0.98 |
| 3 | 1.9 | 1.39 | 43.7 | 16 | 1.26 |
| 3.25 | 1.88 | 1.61 | 43.74 | 15.9 | 1.47 |
| 3.5 | 2.02 | 2.13 | 43.25 | 15.8 | 1.5 |
Reference picture
Configuration(mm)

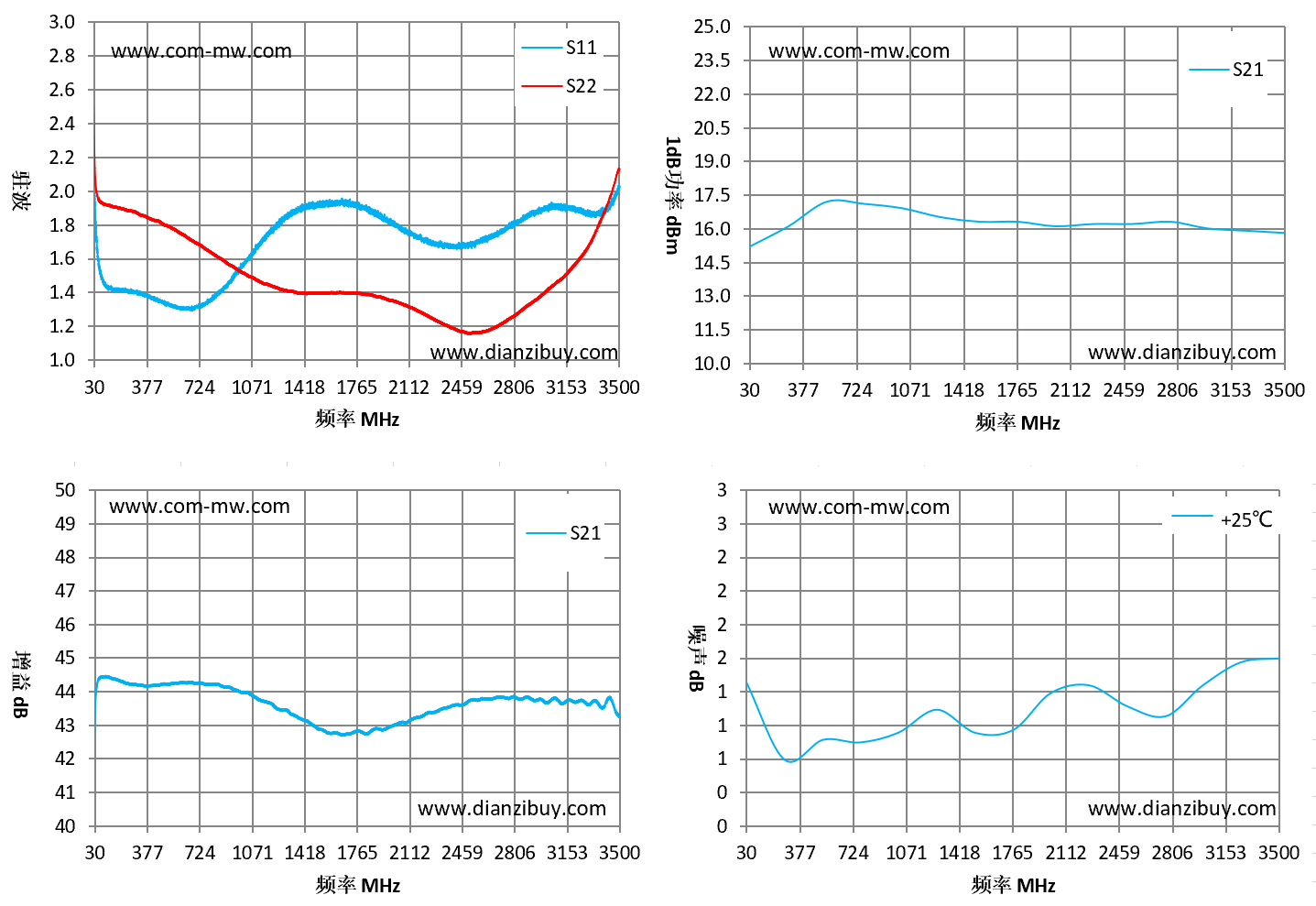

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
