LNA
11.75~12.75GHz, Gain60dB, Noise figure1.3dB, P-1dB5dBm, SMA-K
- DLNA8-11.75-12.75G-3630
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Low noise
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 11.75 | ~ | 12.75 | GHz |
| Gain | 60 | dB | ||
| Gain flatness | ±1 | dB | ||
| Noise figure | 1.3 | dB | ||
| VSWR | 1.8 | |||
| P-1dB | 5 | dBm |
Other parameters
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Power supply interface | SMA connector power supply |

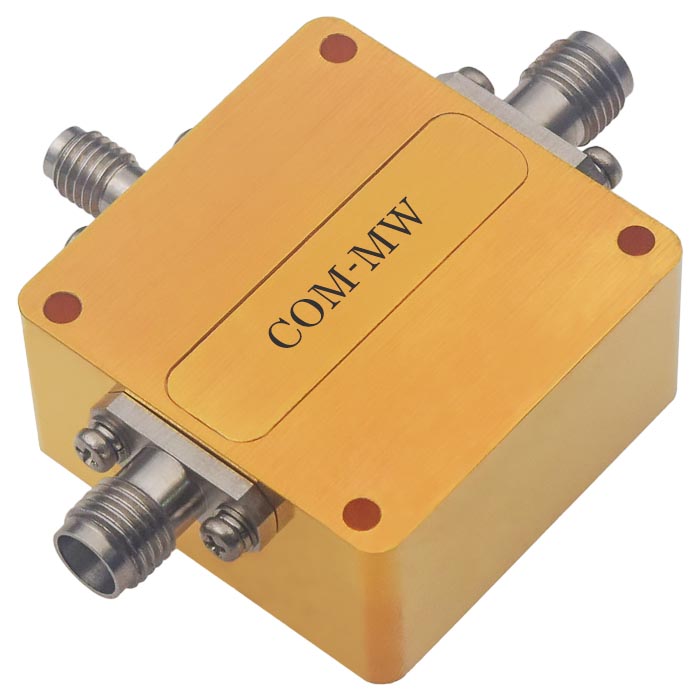

Reference picture

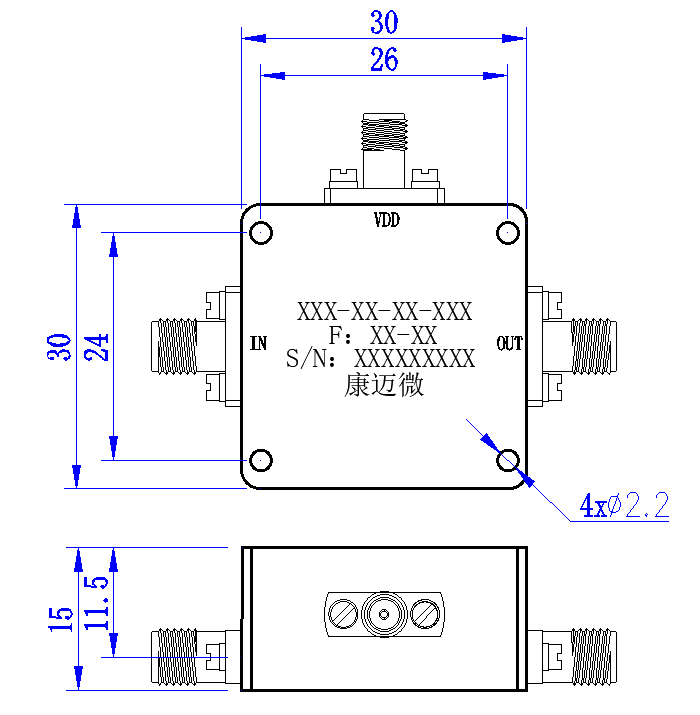

Configuration(mm)
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
