Power amplifier
4.8~9.2GHz, Gain46dB(正斜率), Psat25dBm, SMA
- DPA8-4.8-9.2G-3664
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 4.8 | ~ | 9.2 | GHz |
| Gain | 46 | dB(正斜率) | ||
| Gain difference | 5 | dB | ||
| Gain flatness | 5 | dB | ||
| Noise figure | 2.5 | dB | ||
| VSWR | 2.2 | |||
| P-1dB | 24 | dBm | ||
| Psat | 25 | dBm | ||
| Max input power | 10 | dBm | ||
| Spur reduction | 55 | dBc | ||
| Harmonic Rejection | 20 | dBc | ||
| OIP3 | 35 | dBm | ||
| 反相隔离 | 60 | dBc |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 400mA |
| Operation Temp. | -30~+60℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency | S11 | S22 | GAIN | P-1 | PSAT | NF |
| GHz | VSWR | VSWR | dB | dBm | dBm | dB |
| 4 | 1.99 | 1.28 | 47.36 | 28.5 | 29.7 | 1.42 |
| 4.43 | 2 | 1.29 | 47.63 | 28.5 | 29.6 | 1.03 |
| 4.86 | 1.97 | 1.27 | 48.09 | 28.6 | 29.7 | 1.39 |
| 5.29 | 1.92 | 1.24 | 48.8 | 28.1 | 29.5 | 1.12 |
| 5.71 | 1.81 | 1.22 | 49.6 | 28.1 | 29.4 | 1.47 |
| 6.14 | 1.7 | 1.22 | 50.26 | 28 | 29.4 | 1.36 |
| 6.57 | 1.59 | 1.2 | 50.88 | 28.2 | 29.4 | 1.44 |
| 7 | 1.53 | 1.19 | 51.42 | 28.1 | 29.5 | 1.44 |
| 7.43 | 1.49 | 1.16 | 52.05 | 28.1 | 29.5 | 1.3 |
| 7.86 | 1.47 | 1.18 | 52.54 | 28.2 | 29.9 | 1.42 |
| 8.29 | 1.51 | 1.21 | 52.91 | 28.3 | 29.4 | 1.32 |
| 8.71 | 1.56 | 1.27 | 53.1 | 28.2 | 29.2 | 1.49 |
| 9.14 | 1.6 | 1.33 | 53.17 | 28.2 | 29.2 | 1.43 |
| 9.57 | 1.64 | 1.37 | 53.27 | 28.3 | 29.6 | 1.64 |
| 10 | 1.68 | 1.14 | 53.21 | 27.9 | 29.6 | 1.55 |

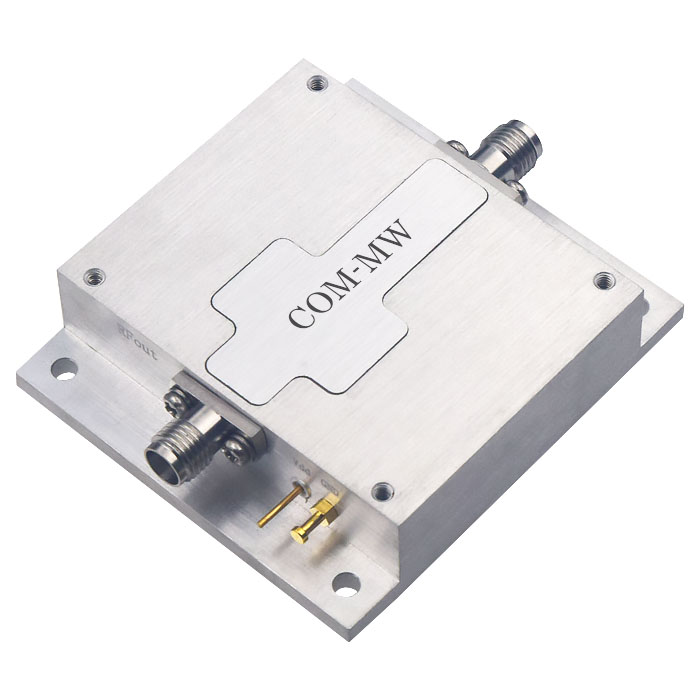

Reference picture

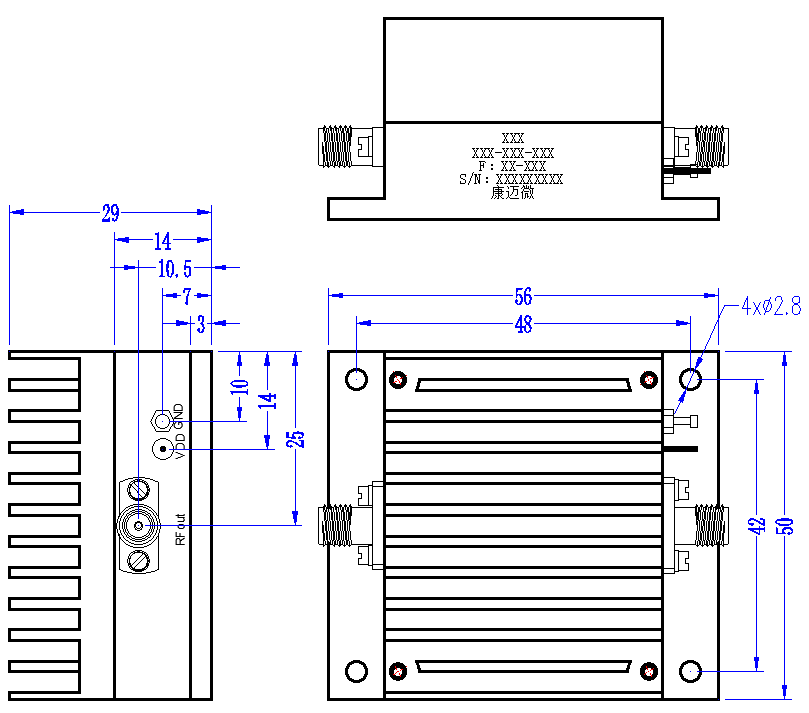

Configuration

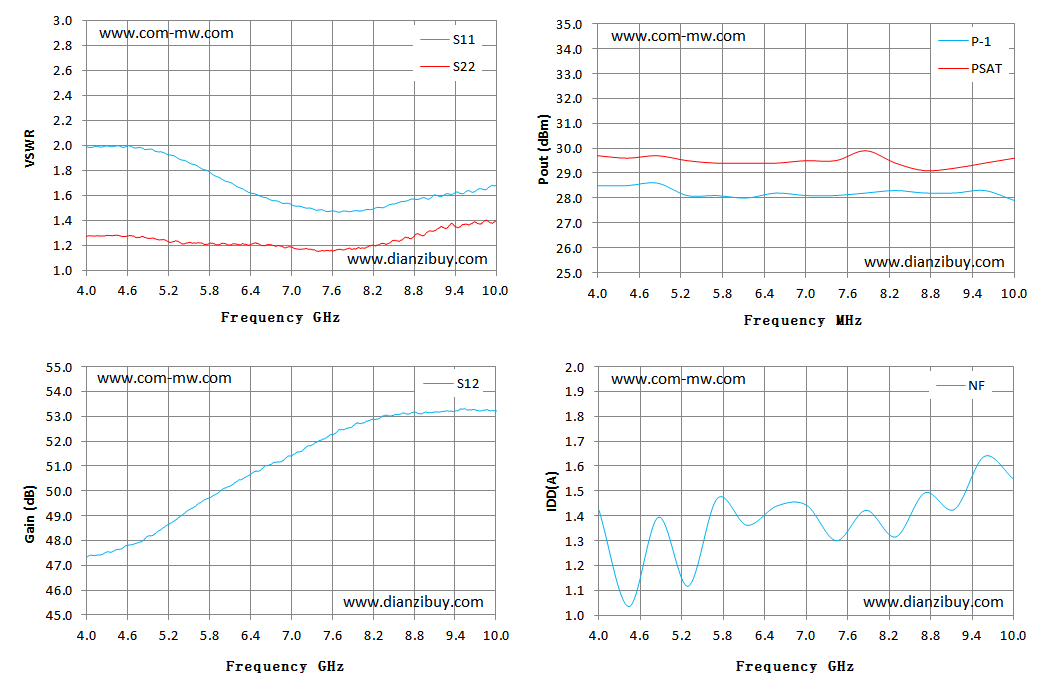

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.

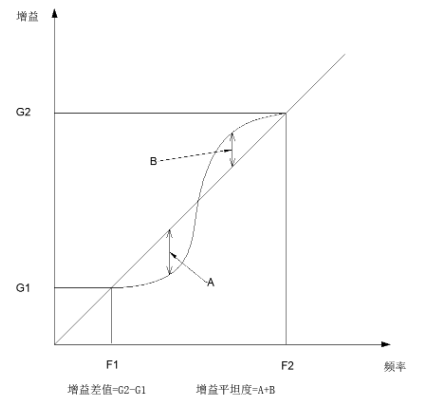

Explanation of gain difference and gain flatness
