Power amplifier
0.009~6000MHz, Gain40dB, Output Psat33dBm, SMA
- DPA8-0.009-6000-9149
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
宽带功率放大器
Main specifications
| Parameters | Min | Typical | Max | Units | Units |
| Frequency | 0.009 | ~ | 6000 | MHz | |
| Gain | 40 | dB | Small signal gain | ||
| Gain flatness | ±4 | dB | |||
| Input VSWR | 1.6 | 2 | |||
| Output Psat | 33 | dBm | |||
| Efficiency | 20 | % | |||
| Spur reduction | 50 | 60 | dBc | ||
| Harmonic Rejection | 8 | dBc |
Other parameters
| Connector | SMA-F or K |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +28V |
| Working current | 500mA |
| power waste | ≤9W |
| Operation Temp. | -20~+40℃ Design assurance |
| 散热方式 | 强制风冷 |
Typical test data
| F（MHz） | 0.009 | 0.01 | 1 | 10 | 50 | 100 |
| Pin（dBm) | 0.19 | -13.53 | -9.72 | -3.27 | -4.61 | -3.21 |
| Pout（SAT）（dBm） | 33.01 | 35.36 | 35.45 | 35.45 | 35.32 | 36.35 |
| Pout（SAT）（W） | 1.99 | 3.43 | 3.50 | 3.50 | 3.4 | 4.31 |
| Ids（A） | 0.33 | 0.34 | 0.35 | 0.36 | 0.38 | 0.39 |
| Gain（dB） | 52.80 | 52.93 | 54.50 | 47.00 | 48.00 | 48.76 |
| ŋ（%） | 21.64 | 35.66 | 34.89 | 33.94 | 31.9 | 38.62 |
| 2nd harmonic rejection (dBc) | 8.00 | 10.60 | 12.40 | 13.00 | 12.00 | 18.00 |
| 3rd harmonic rejection (dBc) | 19.15 | 15.80 | 13.70 | 15.00 | 17.00 | 12.00 |
| 4th harmonic rejection (dBc) | 22.00 | 15.80 | 15.00 | 22.00 | 22.70 | 23.00 |
| 杂波抑制（dBC） | 63.20 | 63.90 | 63.00 | 68.80 | 71.00 | 75.00 |
| F（GHz） | 1 | 1.8 | 2.6 | 3.4 | 4.2 | 5 | 5.8 | 6.2 |
| Pin（dBm) | -1.13 | -0.66 | -0.40 | -2.21 | 1.74 | 4.40 | -1.54 | -2.67 |
| Pout（SAT）（dBm） | 36.48 | 35.38 | 34.93 | 33.95 | 33.87 | 33.28 | 32.69 | 31.30 |
| Pout（SAT）（W） | 4.44 | 3.45 | 3.11 | 2.48 | 2.43 | 2.12 | 1.85 | 1.34 |
| Ids（A） | 0.42 | 0.40 | 0.40 | 0.35 | 0.40 | 0.38 | 0.34 | 0.30 |
| Gain（dB） | 47.60 | 45.86 | 46.10 | 45.00 | 43.88 | 42.64 | 42.29 | 39.61 |
| ŋ（%） | 37.27 | 30.28 | 27.37 | 25.12 | 21.65 | 19.89 | 19.34 | 15.59 |
| 2nd harmonic rejection (dBc) | 25.00 | 16.00 | 15.80 | 22.60 | 21.00 | 15.20 | 15.50 | 16.60 |
| 3rd harmonic rejection (dBc) | 11.80 | 13.30 | 19.40 | 18.10 | 20.40 | 17.80 | 23.30 | 30.00 |
| 4th harmonic rejection (dBc) | 25.10 | 27.00 | 22.80 | 23.60 | 37.20 | 29.20 | 36.00 | 38.40 |
| 杂波抑制（dBC） | 72.00 | 74.00 | 74.00 | 74.00 | 74.00 | 74.00 | 5.30 | 63.00 |

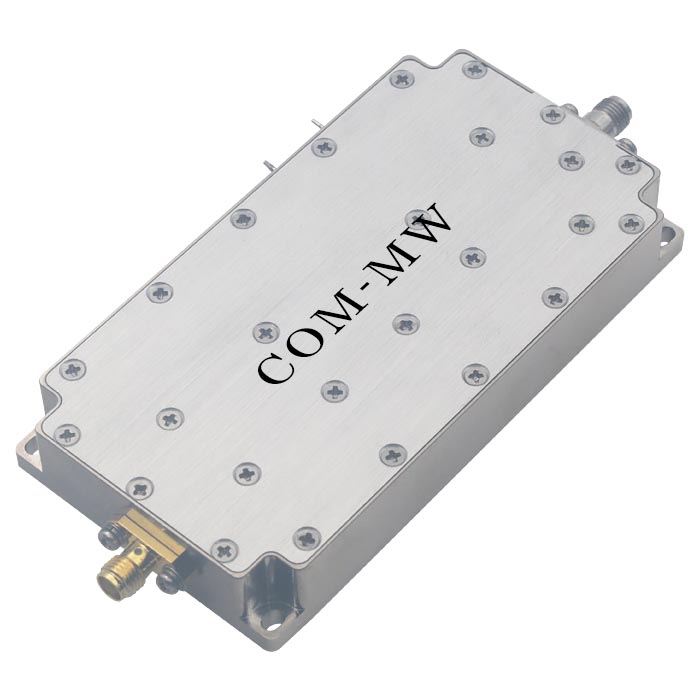

Reference picture

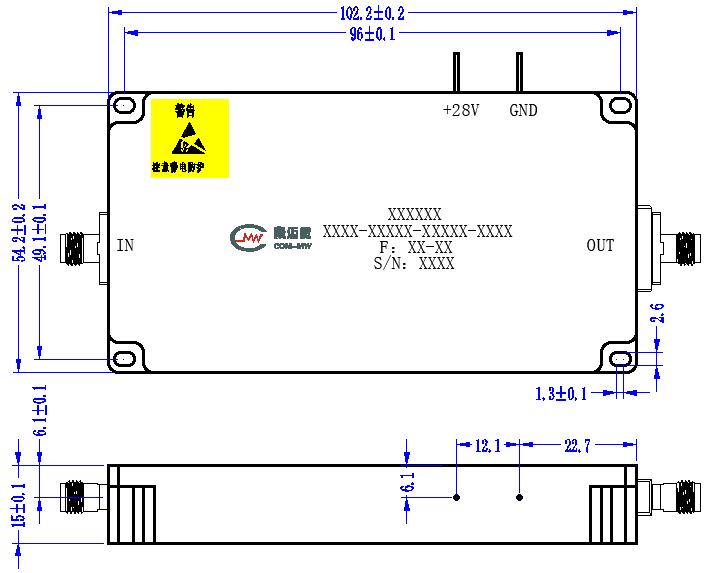

Configuration

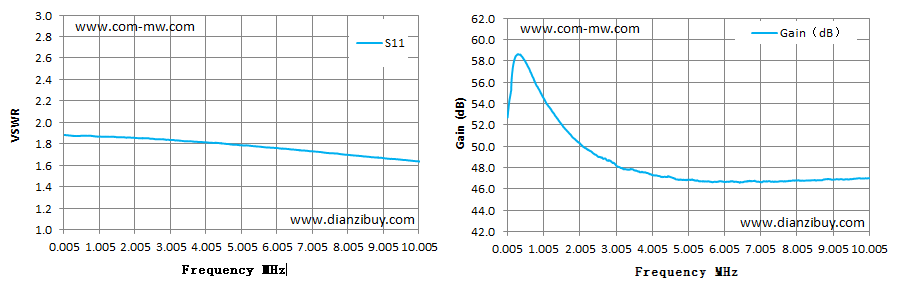

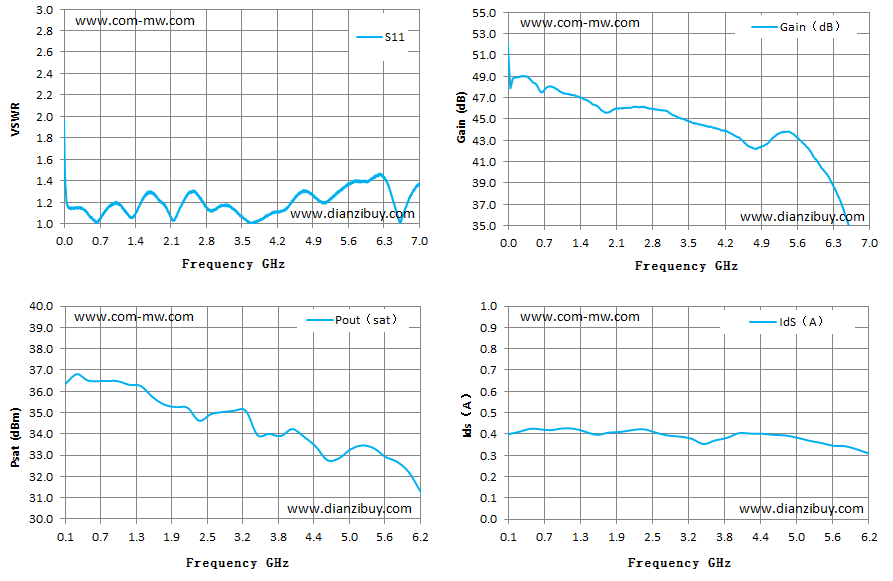

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
