LNA
10~3000MHz, Gain17dB, Noise figure3.0dB, P-1dB10dBm, SMA-K
- DLNA8-30-3000-1926
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Product features
Broadband, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 10 | ~ | 3000 | MHz |
| Gain | 17 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 3.0 | dB | ||
| VSWR | 2.0 | |||
| P-1dB | 10 | dBm |
Other parameters
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Nickel plating |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Output port power supply |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 gain | S21 Noise | S21 P-1dB |
| 1.55 | 1.59 | 19.34 | 2.42 | \ | |
| 0.29 | 1.7 | 1.1 | 20.03 | 2.17 | 11.3 |
| 0.57 | 1.63 | 1.02 | 20.21 | 2.54 | 11.87 |
| 0.86 | 1.55 | 1.14 | 20.44 | 2.51 | 12.4 |
| 1.14 | 1.5 | 1.3 | 20.67 | 2.36 | 13.14 |
| 1.43 | 1.49 | 1.41 | 20.74 | 2.29 | 13.8 |
| 1.71 | 1.47 | 1.45 | 20.67 | 2.43 | 14.1 |
| 2 | 1.4 | 1.47 | 20.61 | 2.68 | 14.5 |
| 2.29 | 1.42 | 1.55 | 20.15 | 2.75 | 14.5 |
| 2.57 | 1.49 | 1.59 | 19.54 | 2.77 | 14.3 |
| 2.86 | 1.52 | 1.49 | 18.91 | 2.73 | 14.2 |
| 3.14 | 1.58 | 1.43 | 18.16 | 2.67 | 13.7 |
| 3.43 | 1.76 | 1.62 | 17.4 | 2.73 | 12.8 |
| 3.71 | 1.9 | 1.81 | 16.58 | 2.9 | 11.2 |
| 4 | 1.89 | 1.76 | 15.98 | 3.14 | 11.1 |

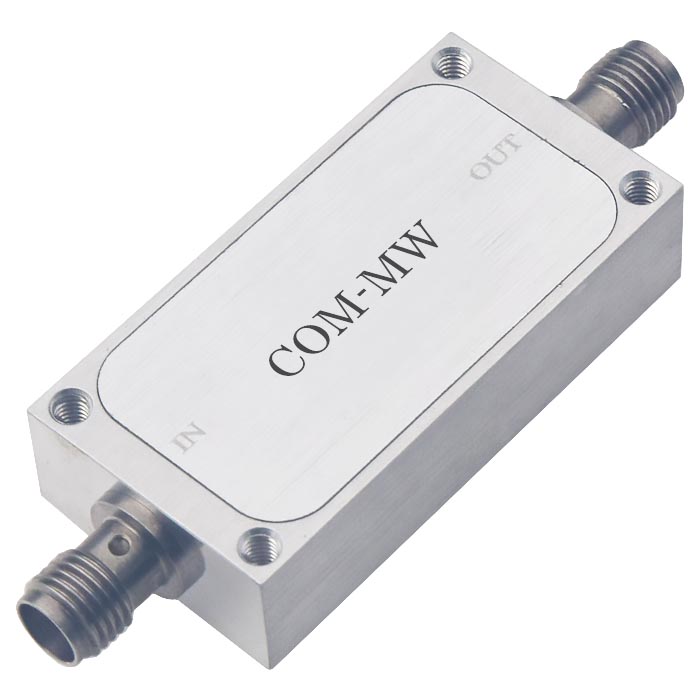

Reference picture

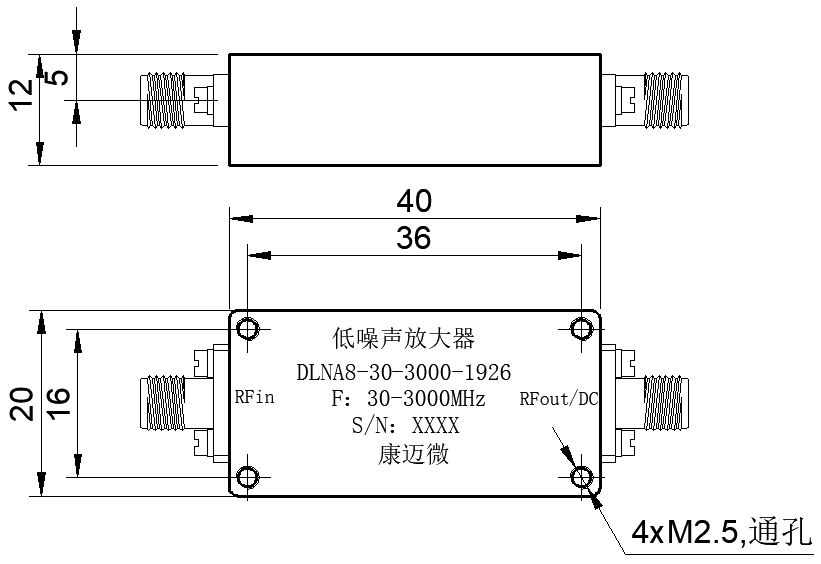

Configuration(mm)

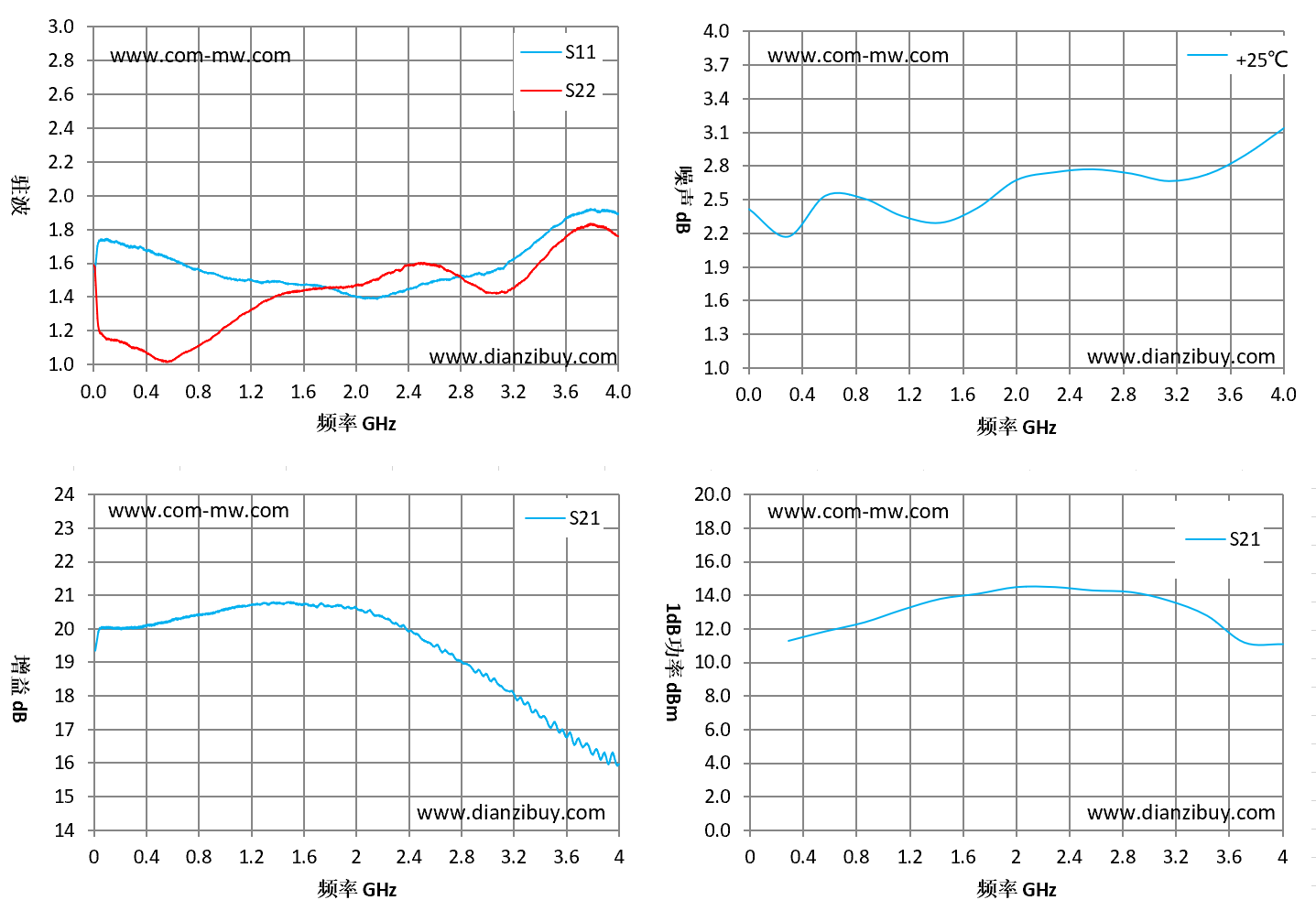

Typical test curve
