Power amplifier
8150~8250MHz, Gain35dB, Psat36dBm, SMA
- DPA8-8150-8250-3502
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 8150 | ~ | 8250 | MHz |
| Gain | 35 | dB | ||
| Gain flatness | ±1.5 | dB | ||
| Input VSWR | 2 | |||
| Psat | 36 | dBm | ||
| Max input power | 10 | dBm |
Other parameters
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +28V |
| Working current | 1600mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Power supply DB9-K |
DB9-K定义
| No. | definition | Note |
| 1 | TTL | Enable power amplifier, release high-level power, turn off low-level power amplifier |
| 2-5 | +28V | |
| 6-9 | GND |

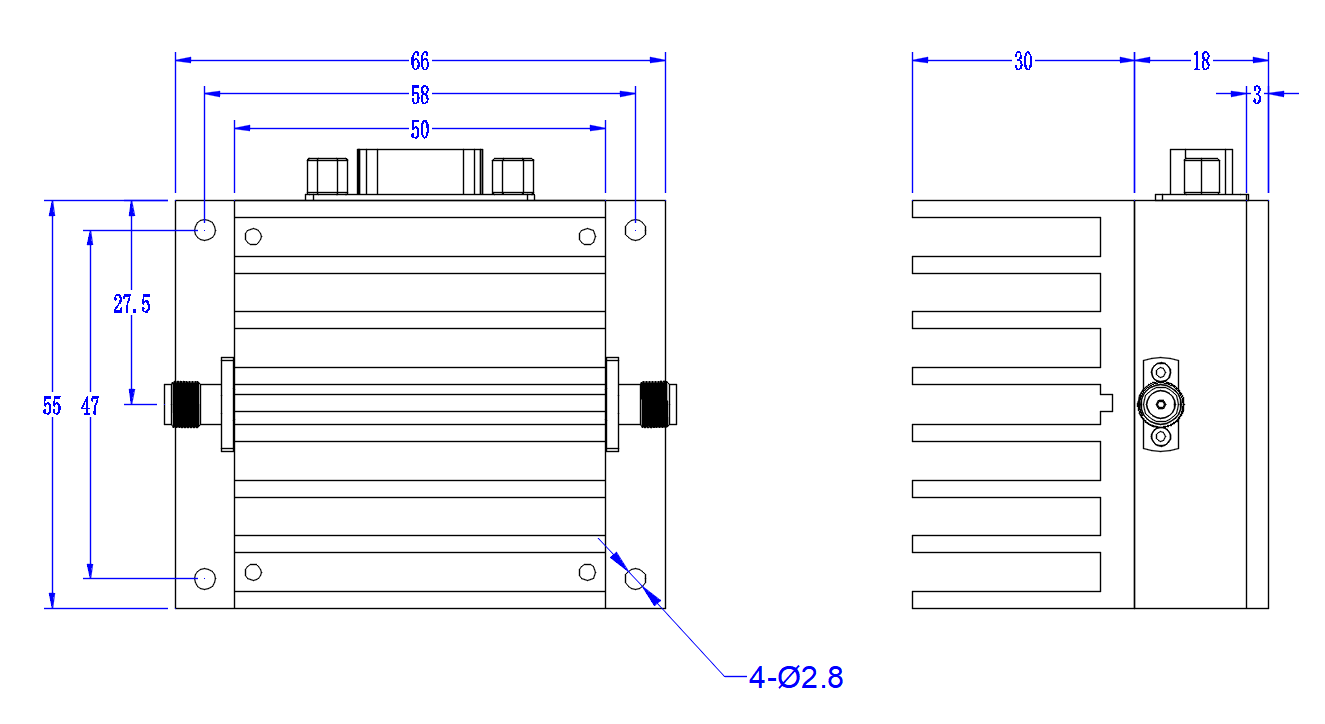

Configuration
Note
Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
