LNA
0.01~67GHz, Gain27dB, Noise figure7.5dB, P-1dB13dBm, 1.85
- DLNA8-0.01-67G-9192
- China
- One Year
- +86-19938031308
- sales@com-mw.com, cynthia@com-mw.com
- 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
- For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
- No restrictions on export to any country
- RoHS: no(Customization Needed for ROHS Compliance)
- The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.
Product Details
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.01 | ~ | 67 | GHz |
| Gain | 27 | dB | ||
| Noise figure | 7.5 | dB | ||
| VSWR | 2.2 | 2.8 | ||
| P-1dB | 13 | dBm |
Other parameters
| Connector | 1.85-F or K |
| Impedance | 50Ω |
| Working voltage | +8V |
| Working current | 400mA |
| Operation Temp. | -30~+65℃ Design assurance |
Typical test data
| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain dB | S21 P-1 dbm | S21 Psat dbm |
| 0.01 | 1.12 | 1.41 | 35.55 | 16.85 | 19.31 |
| 0.1 | 1.11 | 1.36 | 35.05 | 16.07 | 19.37 |
| 0.5 | 1.11 | 1.55 | 32.64 | 14.87 | 18.60 |
| 1 | 1.09 | 1.53 | 32.63 | 15.06 | 18.64 |
| 4.5 | 1.14 | 1.40 | 30.89 | 15.49 | 18.67 |
| 8 | 1.26 | 1.71 | 31.80 | 15.60 | 19.29 |
| 11.5 | 1.46 | 1.70 | 32.88 | 16.44 | 19.77 |
| 15 | 1.61 | 1.22 | 34.60 | 16.47 | 19.57 |
| 18.5 | 1.82 | 1.95 | 33.05 | 16.03 | 19.43 |
| 22 | 1.32 | 1.50 | 33.11 | 15.48 | 19.49 |
| 25.5 | 1.52 | 1.26 | 30.71 | 15.43 | 19.09 |
| 29 | 1.94 | 2.11 | 30.55 | 14.42 | 18.27 |
| 32.5 | 1.71 | 1.73 | 32.21 | 14.82 | 18.44 |
| 36 | 2.35 | 1.25 | 33.17 | 13.60 | 18.30 |
| 39.5 | 1.92 | 2.31 | 33.42 | 13.28 | 18.60 |
| 43 | 1.40 | 2.04 | 31.76 | 12.89 | 18.90 |
| 46.5 | 1.38 | 1.63 | 29.14 | 14.35 | 18.10 |
| 50 | 1.85 | 2.04 | 32.36 | 14.79 | 18.20 |

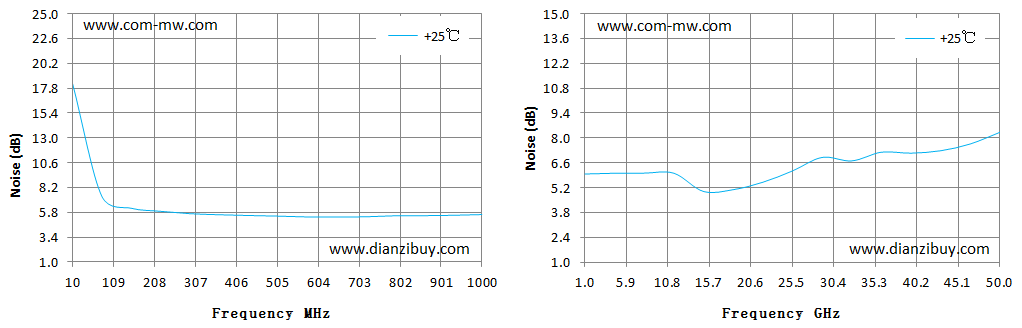

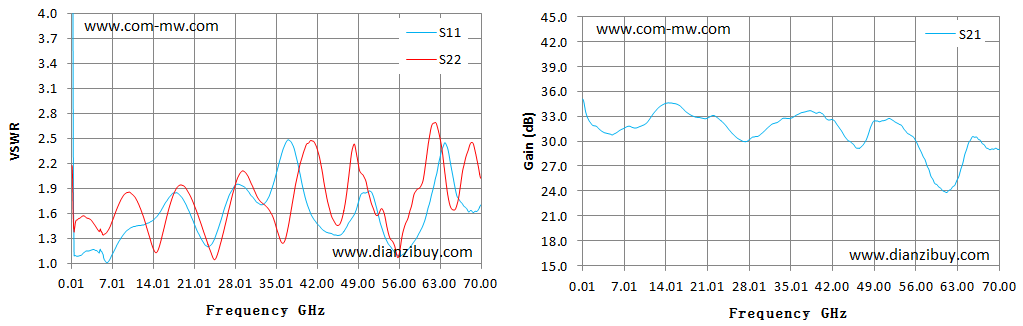

Typical test curve

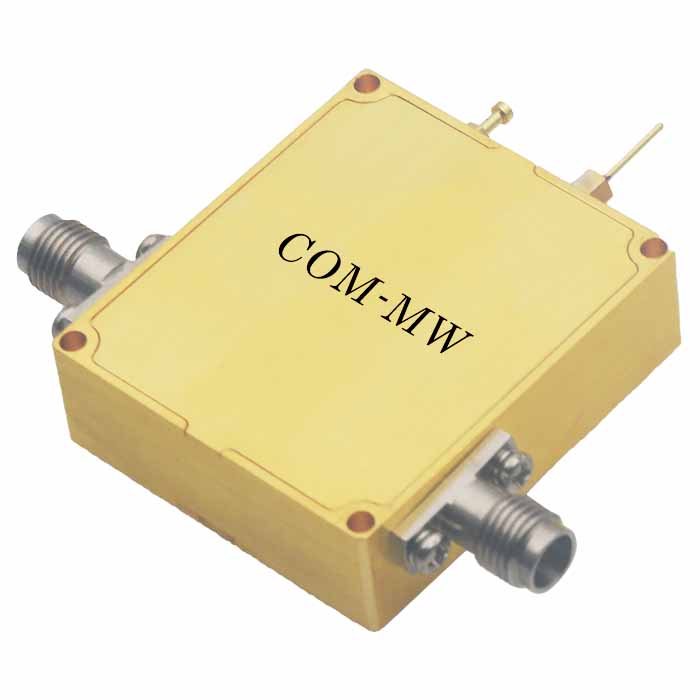

Reference picture

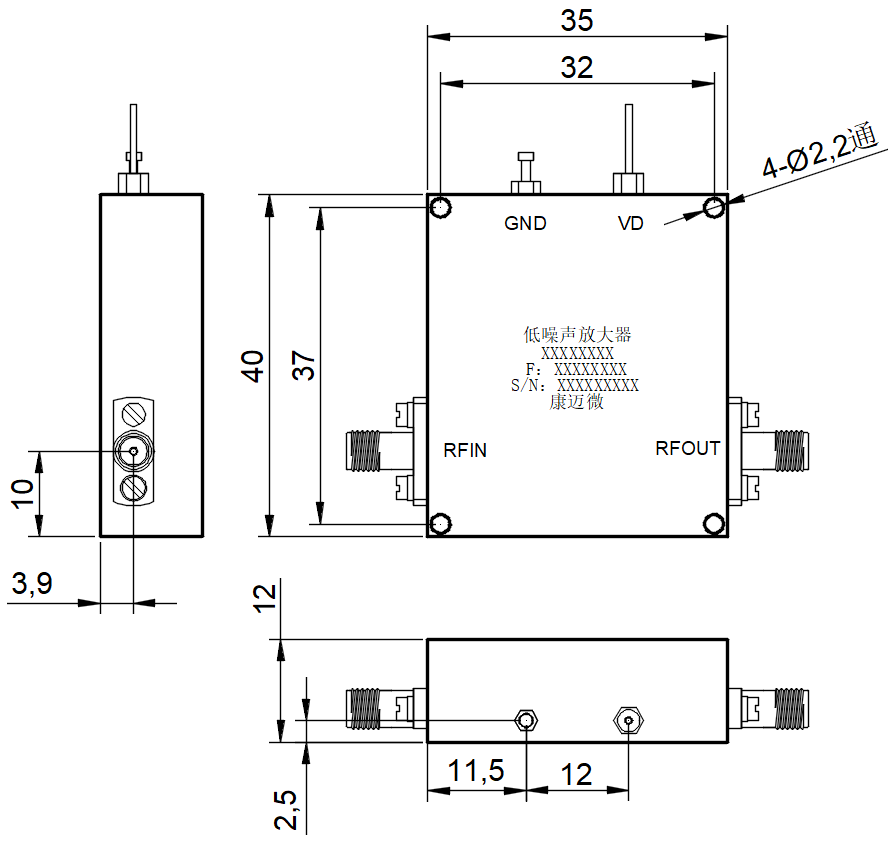

Configuration(mm)

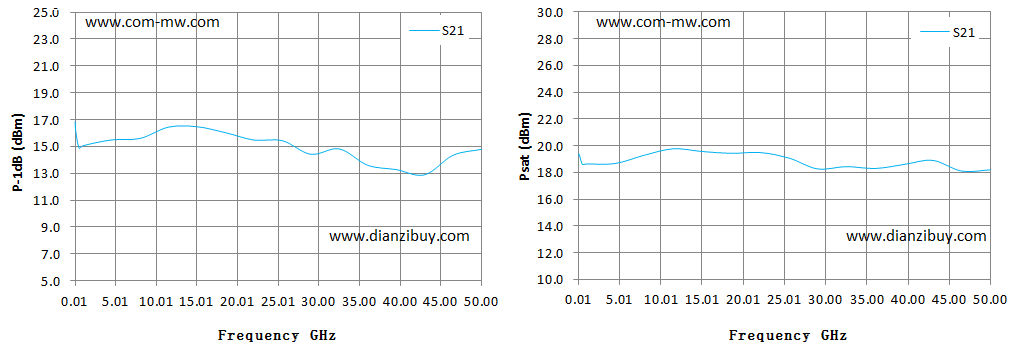

Typical test curve
Note
Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;
Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
Working or storage temperature less than 125 ℃;
Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
