LNA

18~26.5GHz, Gain40dB, Noise figure2.4dB, P-1dB10dBm, SMA

  • DLNA8-18000-26500-011
  • China
  • One Year
  • +86-19938031308
  • sales@com-mw.com, cynthia@com-mw.com
  • 3-1-2306, No.37 Jiancai Road, Chenghua Zone, Chengdu
  • For qty details, please search in spot products of dianzibuy. Any changes to the contents are not notified. Please confirm again before ordering.
  • No restrictions on export to any country
  • RoHS: no(Customization Needed for ROHS Compliance)
  • The product must not be used for illegal purposes. Any losses caused by illegal use shall be borne by the customer.

Product Details

DATASHEET
S-PARAMETERS
3D Outline Drawing

Main specifications

ParametersMinTypicalMaxUnits
Frequency18~26.5GHz
Gain40dB
Gain flatness±2.5dB
Noise figure2.43dB
VSWR2.5
P-1dB10dBm
OIP320dBm

Other parameters

ConnectorSMA-K
Connector materialStainless steel
Impedance50Ω
SurfaceGold-plating
Working voltage+12V
Working current300mA
Reverse isolation50dB
Operation Temp.-40~+70℃ Design assurance

Typical test data

Frequency(GHz)S11 VSWRS22 VSWRS21 gainS21 P-1dBS21 Noise
161.061.4944.1614.22.13
171.151.747.4514.51.95
181.22246.5914.32
191.391.9145.6313.91.8
191.391.9145.6313.91.8
201.581.8644.6513.12.02
211.71.6643.9913.51.79
221.571.4843.9214.12.17
231.431.4244.42142.07
241.361.545.0714.12.18
251.281.5344.9315.32.18
251.281.5344.9315.32.18
261.451.5344.5715.72.23
272.41.4543.0815.42.3
283.841.3839.8115.22.68

Reference picture

Configuration(mm)

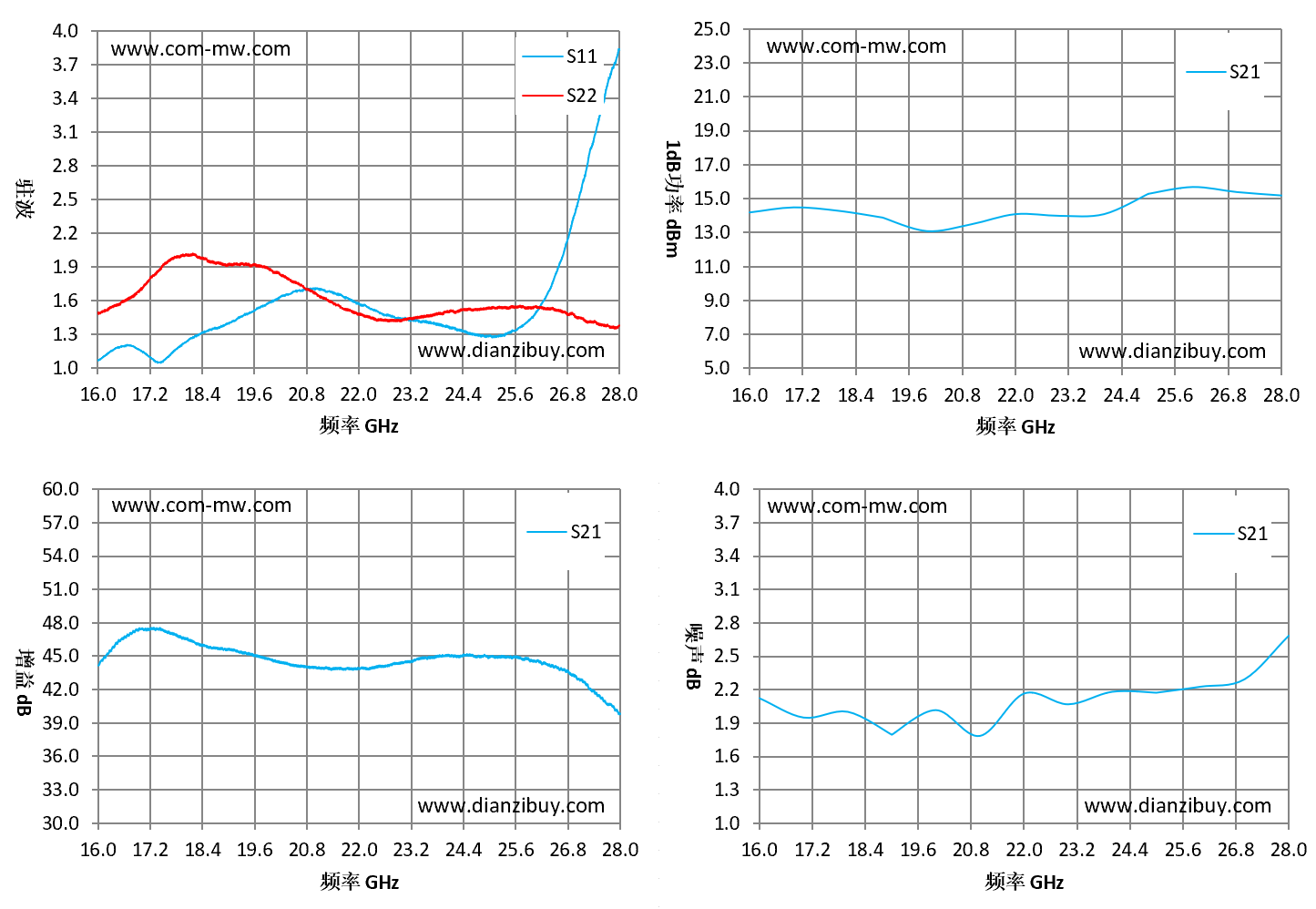

Typical test curve

Note

Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
