DC~40GHz,2组二选一,2.92,网口控制，USB-B控制
- DSM8-0-40G-3497
- 成都
- 一年保修
- (+86)15608095669
- sales@com-mw.com
- 成都市成华区建材路37号九熙广场3期1栋23层
- 要查看该商品是否有现货，请进入电子宝商城的“现货商品”中搜索。
对与本页内容的任何变更，恕不另行通知，订货前，请确认技术参数。 -
产品不可用于违法用途，违法使用造成的损失由客户承担。
产品详情
产品特点
宽带，大功率。
技术要求
| 参数 | 最小 | 典型 | 最大 | 单位 |
| 工作频率 | DC | ~ | 40 | GHz |
| 插入损耗 | 0.4@DC-12GHz | dB | ||
| 插入损耗 | 0.6@12-18GHz | dB | ||
| 插入损耗 | 0.8@18-26.5GHz | dB | ||
| 插入损耗 | 1@26.5-40GHz | dB | ||
| 隔离度 | 70@DC-12GHz | dB | ||
| 隔离度 | 60@12-18GHz | dB | ||
| 隔离度 | 55@18-26.5GHz | dB | ||
| 隔离度 | 50@26.5-40GHz | dB | ||
| 驻波比 | 1.5@DC-12GHz | |||
| 驻波比 | 1.8@18-26.5GHz | |||
| 驻波比 | 2@26.5-40GHz | |||
| 平均功率 | 40@DC-6GHz | W | ||
| 平均功率 | 30@6-12GHz | W | ||
| 平均功率 | 25@12-18GHz | W | ||
| 平均功率 | 12@18-26.5GHz | W | ||
| 平均功率 | 5@26.5-40GHz | W |
其它参数
| 开关时间 | 15ms |
| 开关路数 | 2组二选一 |
| 接口形式 | 2.92 |
| 接口材质 | 不锈钢 |
| 阻抗 | 50Ω |
| 工作电压 | +12VDC |
| 工作温度 | -25~+65℃设计保证 |
| 储存温度 | -40~+80℃设计保证 |
| 开关寿命 | 200万次 |
| 控制方式 | 网口控制，USB-B控制 |
端口定义
| 1 | 分路端口 | J1,J2,J3,J4 |
| 2 | 公共端口 | JC1,JC2 |
Network port control commands
| The name of the command | Feature description | Command format | Command direction | Successful response | Failure response |
| Switch queries | Switch status query | ReadSW:01\n | PC-->Switch | SW:01,V1 , V2 ,END\n | Fail\n |
| Switch settings | Switch settings | SetSW:01,K01,XX\n | Switch --> PC | OK\n | Fail\n |
| Model inquiry | Get the device model | *IDN?\n | PC-->Switch | XXXXXX, RENEW, SN123456789, SV004\n | Fail\n |
| Device model settings | Device model settings | SET IDN:model\n | Switch --> PC | OK\n | Fail\n |
| Network interface setting command | Change the IP address, default gateway, subnet mask, and port number at the same time | SetNETWORK:Address-Gateway-Mask-Port Number\n | PC-->Switch | OK\n | Fail\n |
| Network interface query command | Query the IP address, default gateway, subnet mask, and port number at the same time | LstNETWORK\n | PC-->Switch | IP:address-NETGATE:gateway-NETMASK:mask-PORT:Port number\n | Fail\n |

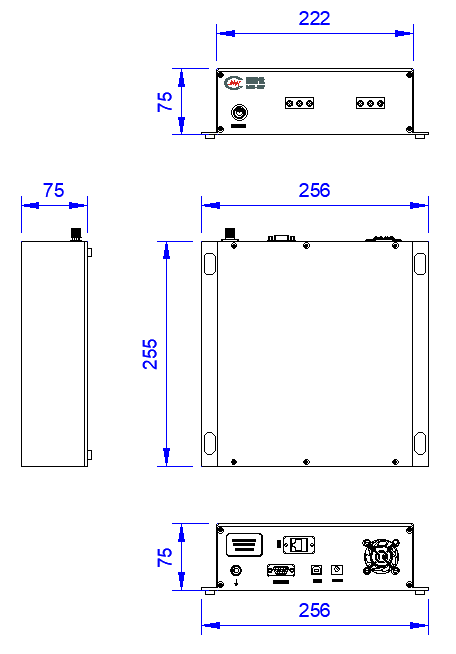

外形结构图（mm）
Description of the network port system
1、The device defaults as a TCP/ip server；
2、Default IP address: 192.168.1.100；
3、Default port number: 3000;
4、Baud rate: 9600
Network port management commands
| The name of the command | Feature description | Command format | Command direction | Successful response | Failure response |
| IP Query commands | Query the IP address of the switch control board | LstIP\n | PC-->Switch | IP:address\n | Fail\n |
| Subnet mask setting command | Modify the subnet mask of the switch board | SetNetMask:parameter\n | PC-->Switch | OK\n | Fail\n |
| Subnet mask query command | Query the subnet mask of the switch control board | LstNetMask\n | PC-->Switch | NetMask:Subnet mask\n | Fail\n |
| Default gateway setup command | Modify the IP address of the switch board | SetNetGate:Default gateway\n | PC-->Switch | OK\n | Fail\n |
| The default gateway query command | Query the default gateway of the switch dashboard | LstNetGate\n | PC-->Switch | NetGate:Default gateway\n | Fail\n |
| Port number setting command | Modify the port number of the switch control board | SetPORT:parameter1\n | PC-->Switch | Disconnect from the network | SetPORTFail |
| Port number query command | Query the port number of the switch control board | LstPORT\n | PC-->Switch | The PORT address is Port number | None |
| IP Set commands | Modify the IP address of the switch board | SetIP:address \n | PC-->Switch | OK\n | Fail\n |
注意事项
| 1 | 清洗产品表面，请勿将产品浸泡清洗液中清洗。 |
| 2 | 整体温度大于125℃的情况，订货前与我们协商。 |
